额定电压450/750V 及以下辐照交联聚烯烃绝缘电线
应用范围
执行标准

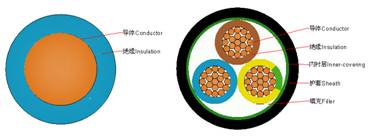

结构简图
型号名称
应用范围
该产品具有较高的耐温等级、无卤低烟,燃烧有害气体少,烟密度低,无腐蚀气体等,安全可靠性高,适用于人员密集或公安部所规定的各类重要社会公共场合
执行标准
JB/T10491
结构简图

型号名称
名 称 型 号 规格
Description Type Specifications
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘电缆 WDZ-BYJ-105(125、150) 0.5~240
Cross-linked PO insulated LSHF cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘软电缆 WDZ-RYJ-105(125、150) 0.5~240
Cross-linked PO insulated LSHF flexible cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘和护套电缆 WDZ-BYJYJ-105(125、150) 0.75~10
Cross-linked PO insulated and sheathed LSHF cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘和护套软电缆 WDZ-RYJYJ-105(125、150) 0.75~2.5
Cross-linked PO insulated and sheathed LSHF flexible cables for a conductor temperature of 105(125、150)℃
上一篇:室内电话线
额定电压450/750V 及以下辐照交联聚烯烃绝缘电线
执行标准
JB/T10491
结构简图

型号名称
名 称 型 号 规格
Description Type Specifications
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘电缆 WDZ-BYJ-105(125、150) 0.5~240
Cross-linked PO insulated LSHF cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘软电缆 WDZ-RYJ-105(125、150) 0.5~240
Cross-linked PO insulated LSHF flexible cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘和护套电缆 WDZ-BYJYJ-105(125、150) 0.75~10
Cross-linked PO insulated and sheathed LSHF cables for a conductor temperature of 105(125、150)℃
耐热105(125、150)℃无卤低烟阻燃交联聚烯烃绝缘和护套软电缆 WDZ-RYJYJ-105(125、150) 0.75~2.5
Cross-linked PO insulated and sheathed LSHF flexible cables for a conductor temperature of 105(125、150)℃
应用范围
该产品具有较高的耐温等级、无卤低烟,燃烧有害气体少,烟密度低,无腐蚀气体等,安全可靠性高,适用于人员密集或公安部所规定的各类重要社会公共场合
